Tamarack EZ RFID

Tamarack EZ RFID

Tamarack EZ RFID

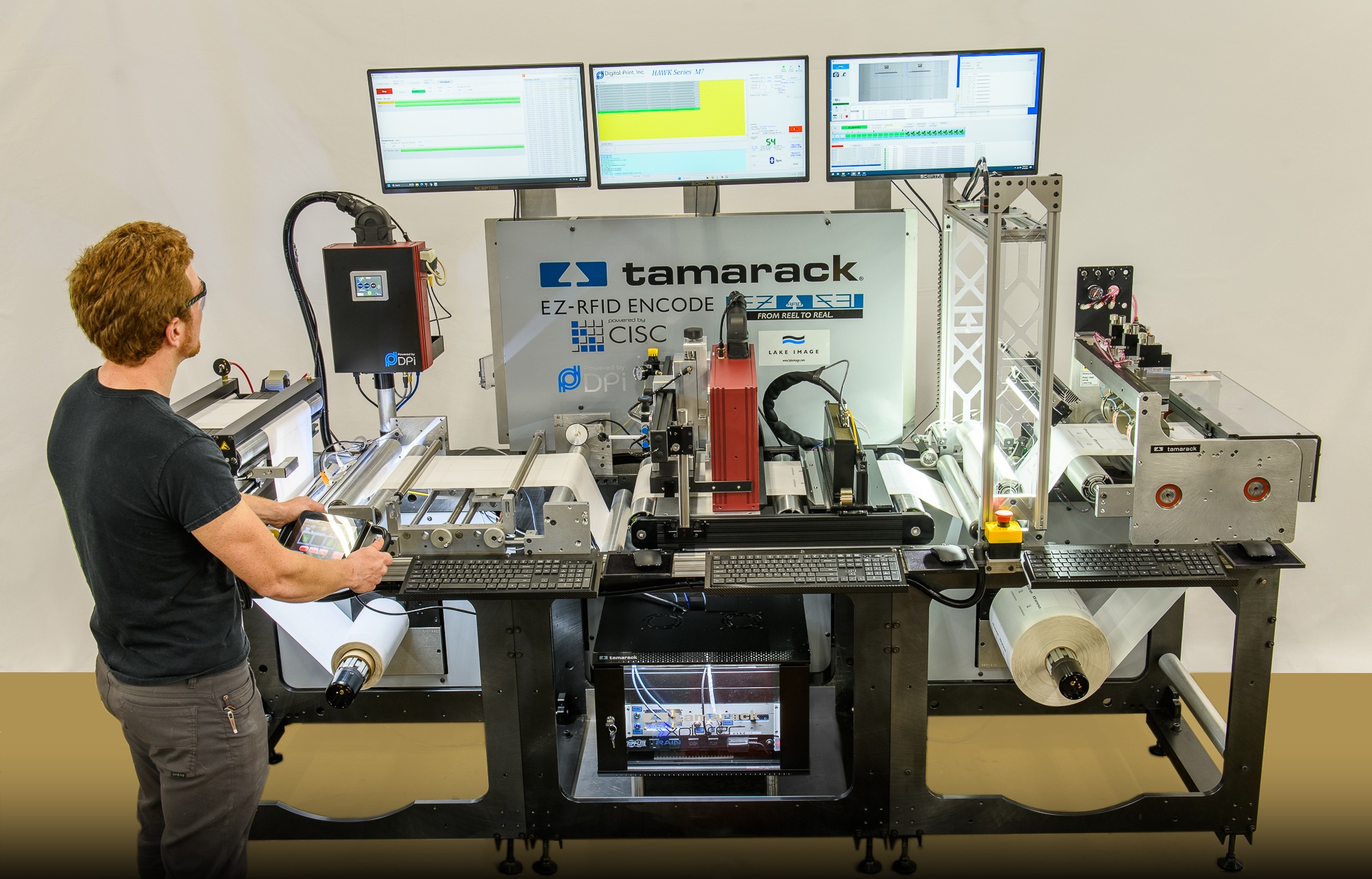

A roll of RFID labels, tickets, or tags is brought to the EZ RFID Encode, the inlay is encoded, tested and locked (if required). Communicating with the reader/encoder, and inket system then marks any labels which do not pass the testing protocol.

Finally, the label roll is slit (if multi-lane) and rewound into finished RFID-enabled, fully encoded and locked labels.

Speeds up to 200 FPM

Speed is inlay, pitch, and data-dependant. Speed example presuming 5/8″ UFH inlay (test, encode EPC, verify, lock)”
Label Length

  • >3″= 200 FPM
  • 2″= 150 FPM
  • 1″= 80 FPM

Contact Us For Pricing & Configuration

Description

EZ RFID Encode Information

  • Can be equipped for UHF and HF/NFC
  • Multi-lane-from Single lane to 6 Lane
  • Slitting- Shear, Crush, or Both
  • Delivery Options such as Turret, Fold, or Sheet are available
  • 14″ and 20″ Widths
  • Variable Data Printing Optional
  • Footprint: 108″ (2740 mm) x 50″ (1270 mm)
  • Weight: 2500 pounds (1130kg)
  • Electrical: 480/415 V, 50/60 Hz, 40 Amps
  • Compressed Air for Unwind/Rewind Shafts and Nip Stations (60 psi)

Tamarack Products is a leading manufacturer of inline and offline web finishing equipment. We engineer equipment that enhances flexibility and versatility to industries such as forms, labels, direct mail providers, and RFID tag production. Contact us to learn more about our many web finishing solutions including RFID inlay insertion equipment.
